Evaporative cooling panels type 5090 and 7090

PAD MANN evaporative cooling panels are a totally natural air cooling system with water supply and minimum energy consumption.

Its operation is based on circulating an air flow through its interior and depending on the speed, type of panel and thickness, the cooling and humidity increase of the air that passes through it is achieved.

We have two different types of panels, the type 5090 which is the one that offers the best cooling performance and is used for evaporative coolers for air conditioning in general and the type 7090 with lower cooling performance but with less pressure drop, its Use is specifically for farms and greenhouses where they have evaporative air conditioning systems with fans that cause a depression inside the premises.

Cooler panel PAD MANN type 5090

Panel formed by treated cellulose sheets intended to cool and add moisture to an air flow.

Base sheet: Treated Cellulose
Maximum water temperature: 55ºC
Maximum air temperature: 150ºC
PH level: 6-9
Dry panel weight: 38 kg / m3
Wet panel weight: 90 kg / m3

Performance and head loss

Cooler panel PAD MANN type 7090

Panel formed by treated cellulose sheets intended to cool and add moisture to an air flow.

Base sheet: Treated Cellulose
Maximum water temperature: 55ºC
Maximum air temperature: 150ºC
PH level: 6-9
Dry panel weight: 38 kg / m3
Wet panel weight: 90 kg / m3

Performance and head loss

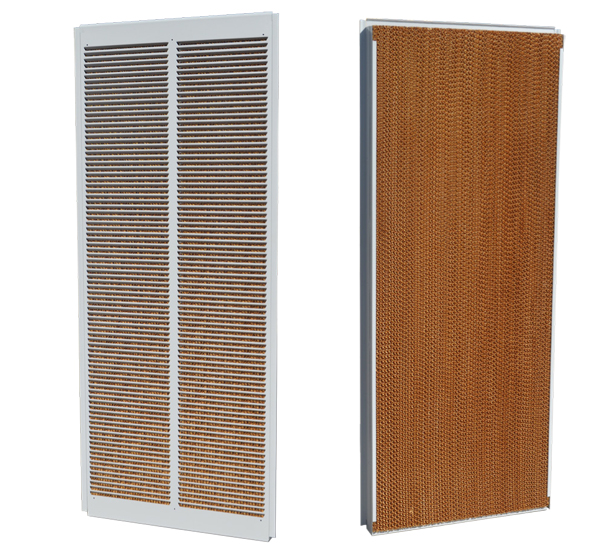

Cooler panels with COMPLEX protection grid

COMPLEK evaporative cooling panels are a totally natural air cooling system with water supply and minimum energy consumption.

Its operation is based on circulating an air flow inside and depending on the speed, type of panel and thickness, the cooling and humidity increase of the air that passes through it is achieved.

The supply is made up of a protection grille made of galvanized steel, oven-painted in RAL7035 gray or AISI-304 stainless steel.

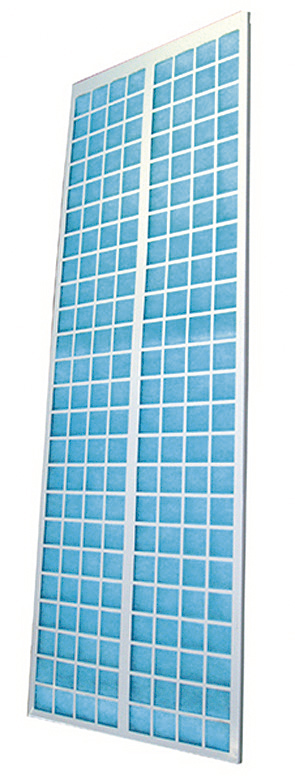

Panels with G4 filter mat

G4 filter mat panels are designed for filtration in ventilation systems and air treatment systems where a high degree of air cleaning is required.

The blanket is made of non-woven polyester synthetic fiber thermally compacted into different layers of fibers creating a progressive and higher density structure in the part where clean air is found.

This type of blanket has great dust retention capacity, supporting high air flows and showing 100% water resistance without collapsing like other untreated filters.

The supply is made with a metal support in galvanized steel painted in oven-dried polyester in gray RAL 7035 or in AISI-304 stainless steel.

Technical data

Grammage: 290 g / m2
Composition: Synthetic polyester fiber
Approximate thickness: 22mm
Nominal working speed: 1.5 m / s
Flow m2: 5,400 m3 / h
Initial pressure drop: 42 Pa
Recommended final pressure drop: 250 Pa
Loss of load supported: 450 Pa
Average Filtration EN779: 90%
Efficacy according to ISO 16890: ISO COARSE 65%
Maximum temperature: 100 ºC
Relative humidity resistance: 100%
Fire resistance: F1
Dust accumulation capacity: 603 g / m2

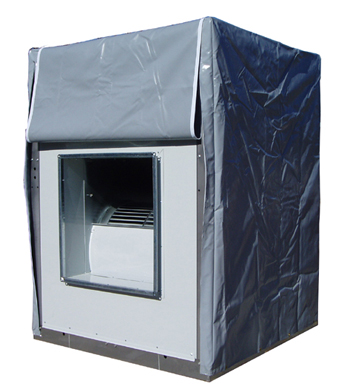

Protective covers for evaporative coolers

We have protective covers for evaporative coolers of our manufacture or special measures for the protection of inclement weather in the seasons of the year where its operation is not required.

Technical data

Polyester material AT 1100
Weight: 580 gr / m2
Thickness: 0.48mm
Finish of the lower skirt with reinforcement and perforations for rope closure
