Portable evaporative cooler 10,080 m3/h - ECO FRESC

Ref.: ECO FRESC

Portable evaporative cooler 10,080 m3/h with 16-speed - ECO FRESC

The ECO FRESC portable evaporative coolers are ideal for cooling in a completely natural way and with low local energy consumption of up to 150 m2.

To cool the air, evaporative cooling technology is used, which consists of passing the outside air through panels moistened with water. As the air passes through this area, it cools and increases its humidity. The treated air is driven by a fan inside the room and by renewing the indoor air comfort temperatures are reached.

The necessary electrical power is 80% less than traditional air conditioning systems and by using water as a cooling element it avoids the emission of harmful gases into the environment.

The ECO FRESC evaporative air conditioners have a 16-speed axial fan to adjust the necessary air flow at all times, they also have an electronic control in charge of performing all the equipment′s functions.

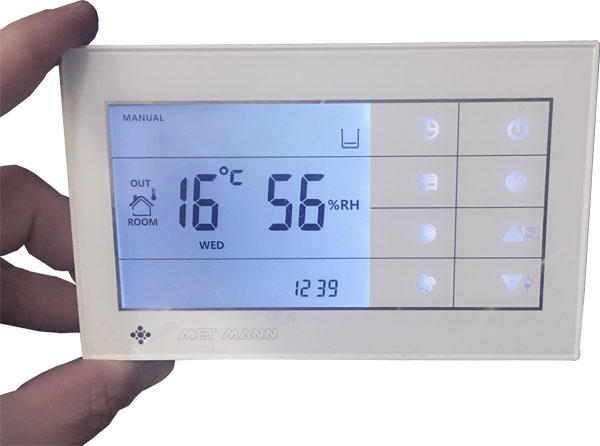

The equipment can be controlled by means of a wall control panel or by remote control.

"Air flows tested by LGAI Technological Center APPLUS"

Instalation and maintenance:

The installation consists of a single-phase electrical connection and a mains water connection.

Its maintenance consists of carrying out an annual review of the cooling panels and a general cleaning of the equipment.

Characteristics:

- Structure made of thick polypropylene with ultraviolet protection.
- Operating modes: Cooling - Ventilation - Extraction
- MANUAL or AUTOMATIC operation with time programming.
- Multifunction remote control with temperature and humidity control.
- Pre cooling and post ventilation for the cooling panels.

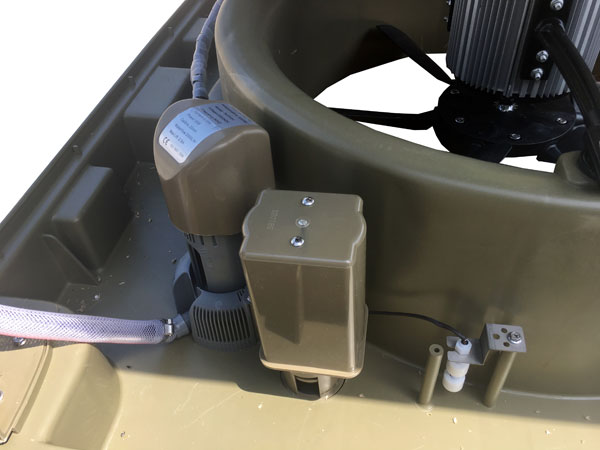

- Water inlet solenoid valve.
- Level sensor and automatic emptying.
- Programmable automatic auto cleaning.
- Cooler panels type 5090, 100mm thick.
- 16 speed axial fan.
- Anti insect filter.
- Transport wheels with brake.
