CAS-W / WE - Cassette with hot or cold water tank
Parameters
Power
8 to30 kW
Cooling capacity
720 to 2.340 m3/h
Cassettes with hot or cold water coils are an excellent choice for heating and/or cooling all types of spaces. They are particularly suitable for installations requiring an air-conditioning system integrated into a suspended ceiling, with air distribution in four directions.
This system uses hot water, supplied by a boiler, or cold water, supplied by a chiller. The water circulates through a heat exchanger, where it transfers thermal energy to the fan, which in turn blows the conditioned air into the room.
The range comprises models with 2- to 4-tube coils and 3-speed radial fans or modulating EC brushless fans.
Characteristics
- AC-230V or EC-230V brushless radial fan
- Air diffuser made from white ABS (RAL 9003) with a snap-fit mounting system
- Central intake cover and 4 manually adjustable side diffusers (optional accessory)

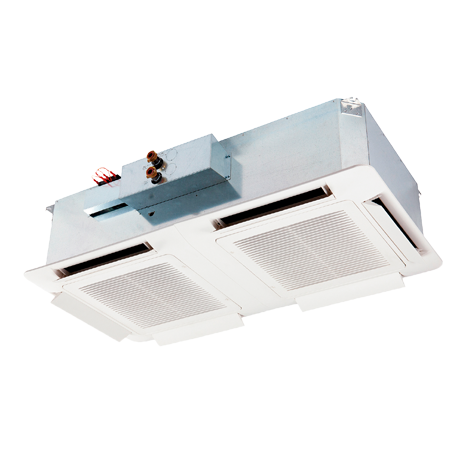

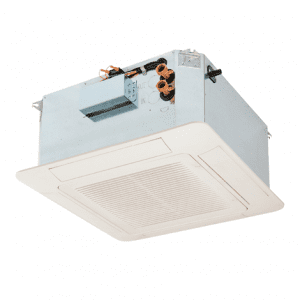

- Galvanised steel frame measuring 600 x 600 mm or 1200 x 600 mm.
- Pre-punched holes for external air intake (Ø72) and air outlet to an adjoining room (Ø155)
- ABS condensate collection tray
- Centrifugal anti-condensation pump
- Square coil with rounded corners, made of copper tubing and aluminium fins secured by mechanical expansion
- Connections with manual bleed valve
- 2- or 4-pipe coils (the 4-pipe mixed circuit ensures better performance in heating and air conditioning)
- Operates with hot water (boiler), low-temperature water (condensing boiler, solar panels, heat pump, etc.), cold water (chillers and/or industrial processes) and water with added glycol
- Class M1 air filter with EU3 filtration rating
- Electrical connection with protective cover.
