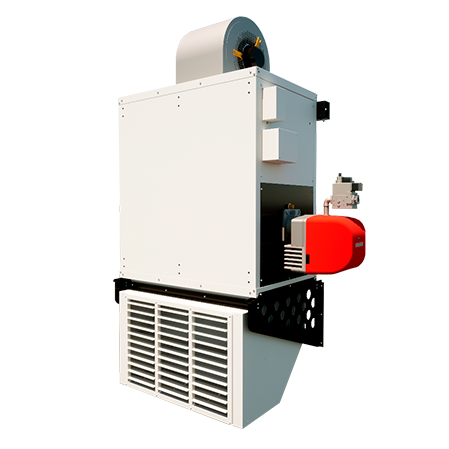

AGM Mural-090 – 100 kW wall-mounted hot air generator

The AGM-Mural hot air generators are hot air equipment that allows you to heat medium and large surface spaces without taking up floor space.

• Model: AGM-090
• Fuel type: Diesel, natural gas or propane gas
• Rated power: 69 kW
• Thermal performance: 90%
• Air flow: 5,800 m3/h
• Available pressure: 100 Pa
• Fan motor power: 1.10 kW
• Electrical voltage: 230V/I/50Hz
• Sound level at 3m: 68 dB (A)
• Dimensions (Width/Depth/Height): / / / mm
• Discharge section: 990 x 600 mm
• Smoke outlet: 150 mm
• Weight: 340kg

• High-performance combustion oven, made of stainless steel in the areas most exposed to heat.
• Exterior panel made of galvanized steel, polyester powder lacquered and oven dried.
• Thermal insulation of the areas most exposed to heat.
• Electrical control and safety panel according to European regulations.
• Control thermostats (Fan/Burner/Thermal safety).
• Low noise centrifugal fan
• Hot air outlet through simple deflection grilles.
• Security system to control the correct depression of the combustion chamber
