DCH- 3/6/CI - Diffuser cubes with 3 and 6 outlets and high induction nozzles for evaporative air conditioner installations
High flow air diffusers with 3 and 6 outputs and high induction cones
A fundamental part for the correct operation of an evaporative cooling system is air diffusion and that is why at MET MANN we have developed a range of 3 and 6 outlet long-range air diffusers as well as a range of high induction.
Evaporative cooling or ventilation systems produce a large amount of air and selecting unsuitable diffusers can cause excessive noise level, blade breakage or incorrect air diffusion.
Our air diffusers are characterized by being robust and offer a special design and construction to avoid loss of air pressure and obtain the best diffusion and range performance.

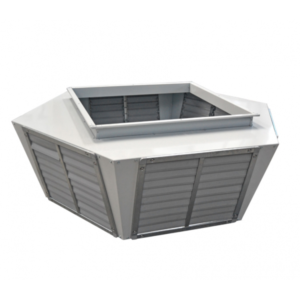

DCH / 6 – 6-way air diffusers

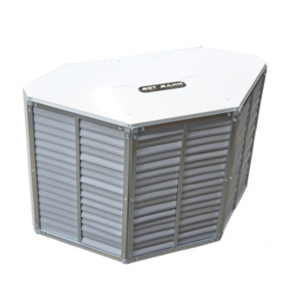

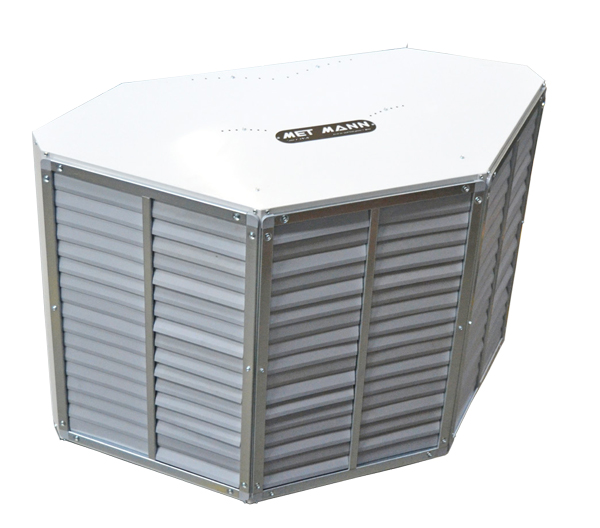

DCH / 3 – 3-way air diffusers

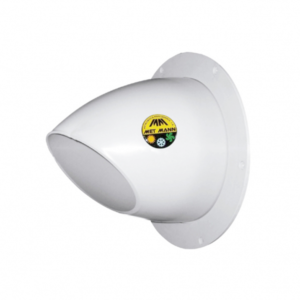

High induction diffuser cone CI-300
Instalation
Diffusion technical data

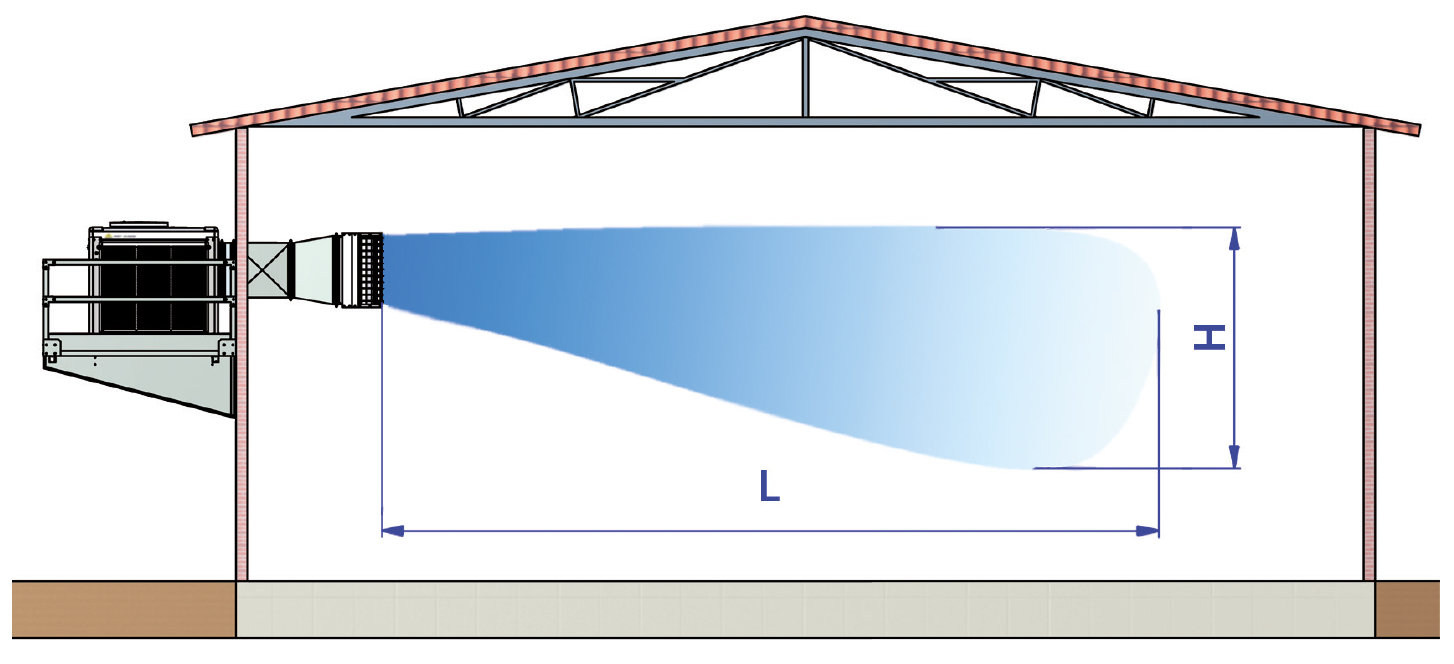

DCH-3

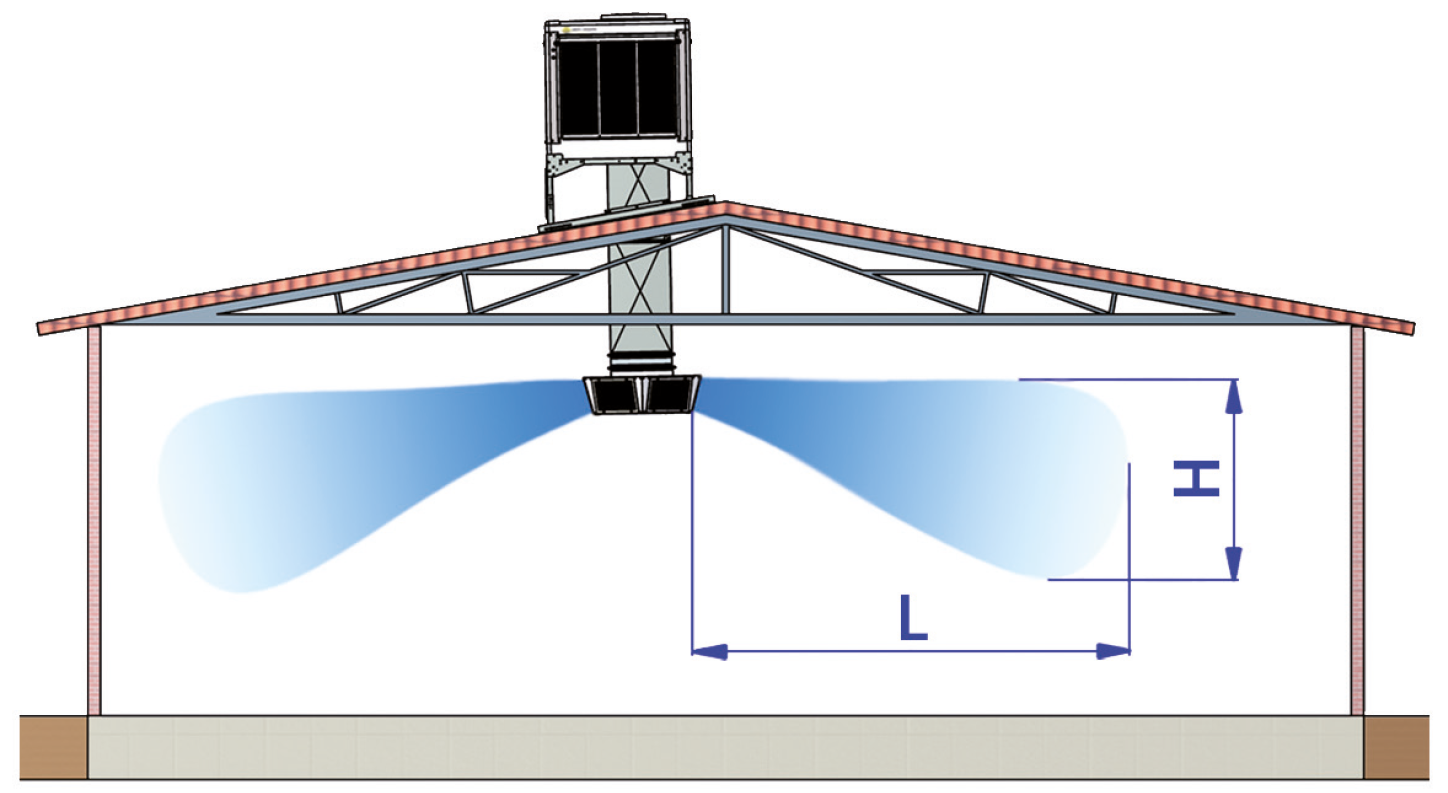

DCH- 6

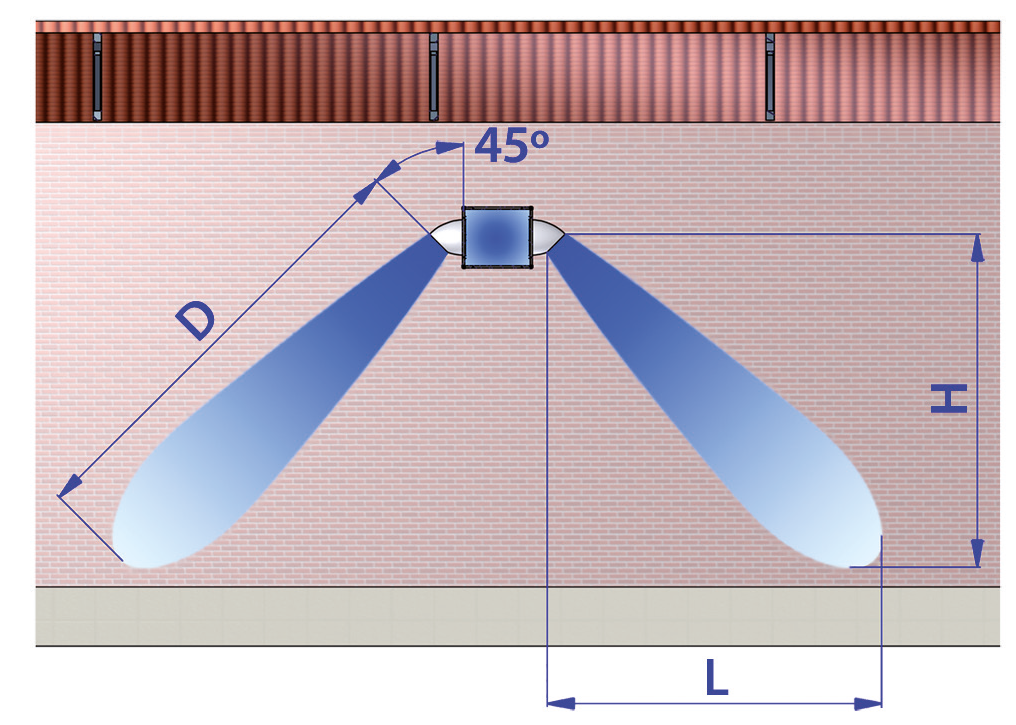

CI- 300
Characteristics
- Admissible flows from 5,500 m3/h to 63,000 m3/h.
- Made of galvanized steel painted in oven-dried polyester powder paint in RAL 7035 gray.
- Simple deflection grilles with slats made of polyamide.
- Opening regulation from 0º to 90º.
- Possibility of supply with double deflection grids.
- 30mm METU clamping frame.

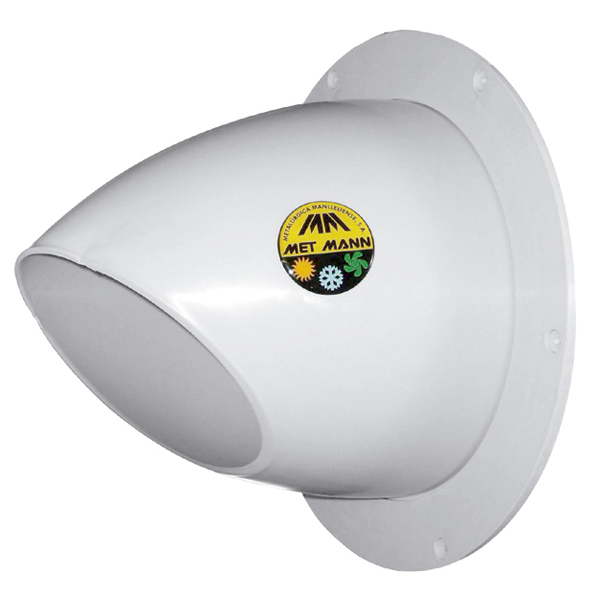

CI- 300 – Features of diffuser cone for long-range air diffusion.
- Admissible flow rates from 50 m3/h to 1,750 m3/h.
- Made of polyamide.
- Maximum working temperature of 70 ºC.
- 45º inclination and 360º rotation.
- Supply in boxes of 10 units with all the fixing elements.
Productos
Showing all 7 results
-
DCH-3/15 - Air diffuser with 3 outlets from 5,600 to 15,000 m3/h
-
DCH-3/40 - Air diffuser with 3 outlets from 16,000 to 38,000 m3/h
-
DCH-3/55 - Air diffuser with 3 outlets from 39,000 to 63,000 m3/h
-
DCH-6/15 - Air diffuser with 6 outlets from 5,600 to 15,000 m3/h
-
DCH-6/55 - Air diffuser with 6 outlets from 39,000 to 63,000 m3/h
-
DCH-6/40 - Air diffuser with 6 outlets from 16,000 to 38,000 m3/h
-

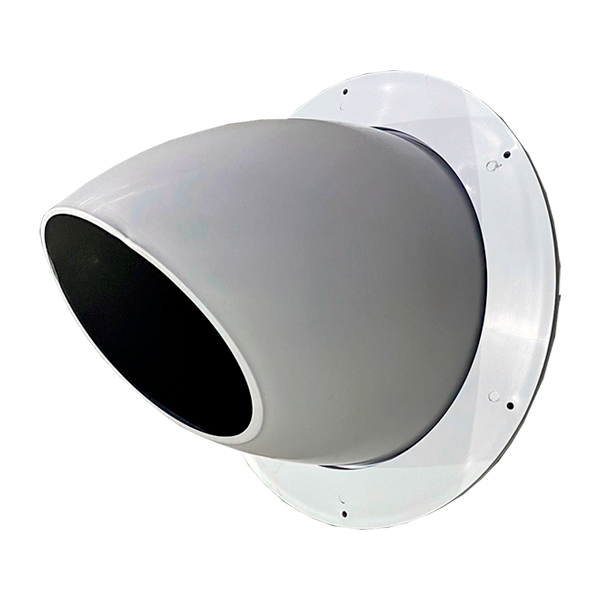

CI-300 - High induction circular diffuser from 50 to 1,750 m3/h
