Industrial air curtain - 2,5 to 3,5m high - VIS 10 A

Industrial air curtain - 2.5 to 3.5m high - VIS 10 A

Industrial air curtain - 2,5 to 3,5m high - VIS 10 A

Ref.: VIS 10 A

Industrial air curtain for doors from 2.5m to 3.5m in height

Constructive details:
- Centrifugal fan of 3 speeds with protection grid.
- Adjustable tilt wall mount.
- Air diffuser in galvanized steel painted in white RAL 9002

Technical data:
Air flow (Max / Med / Min): 3.120 / 2.480 / 1.990 m3 / h
Available Pressure (Max / Me / Min): 220/190/155 Pa
Sound level: (Max / Med / Min): 49/43/37 dB (A)
Door Width: 1.2 to 2.0m
Number of fans: 1
Number of speeds: 3
Maximum speed: 900 rpm
Power consumption: 564W - 2.5 A
Electrical voltage: 230V / I / 50Hz

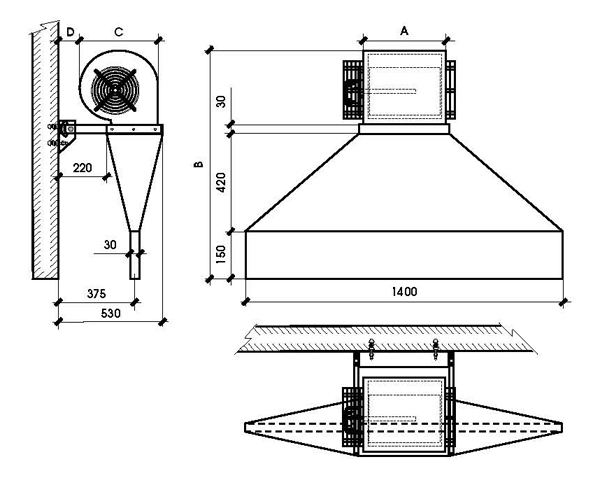

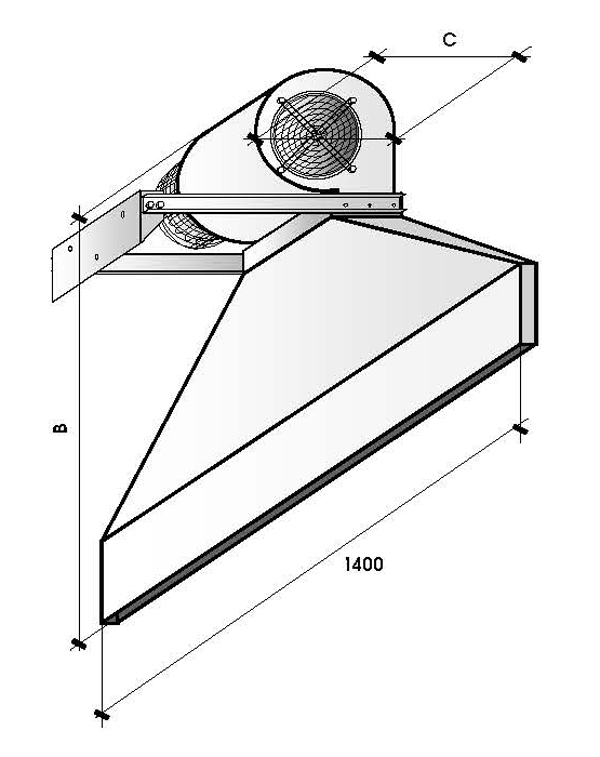

Dimensions:

A = 300
B = 1000
C = 390mm
D = 130mm
Weight: 25 kg




































For wider doors several units can be installed.
