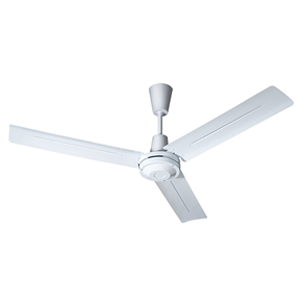

DVW 90 – Ceiling fan of Ø900mm (2,3m to 4.0m high)

Name: DVW 90 - Ceiling fan of Ø900mm (2,3m to 4.0m high)
SKU: 8648
Price: 121.50 EUR
Availability: InStock

Sale!

Ref.: 8648

DVW - 900mm and 1400mm ceiling fans to ventilate in summer and recover heat in winter Industrial ventilation and air curtains

Files

Catalog

Original price was: 162,00 €.Current price is: 121,50 €. + VAT

Technical data

Ceiling fan Ø900mm for cooling in summer and recovering stratified heat in the roof in winter achieving energy savings of up to 25%. Fan of double direction of rotation and suitable for heights of installation of 2,3m to 4m of height.

Propeller diameter: 900mm
Number of propellers: 3
Installation height: 2.3m to 4.0m
Voltage: 230V / I / 50Hz
Power consumption: 50W (0.26A)
Maximum speed: 340 rpm
Height adjustment: 440 / 565mm
Sound level (4m): 35 dB (A)
Weight:5 kg

Main features

Robust equipment.
Encapsulated free maintenance and interference free motor.
Shock absorbers to avoid vibrations.
Simple installation, only the propellers should be installed.
Height adjustment of the support tube.
5 speed control by requesting the TSW 0.3 regulator (optional).
Reversible rotation of the propellers according to the electrical connection made or with DSEL 2 rotary selector (optional).
Minimum tension to turn the propellers 100W.
