Technical data

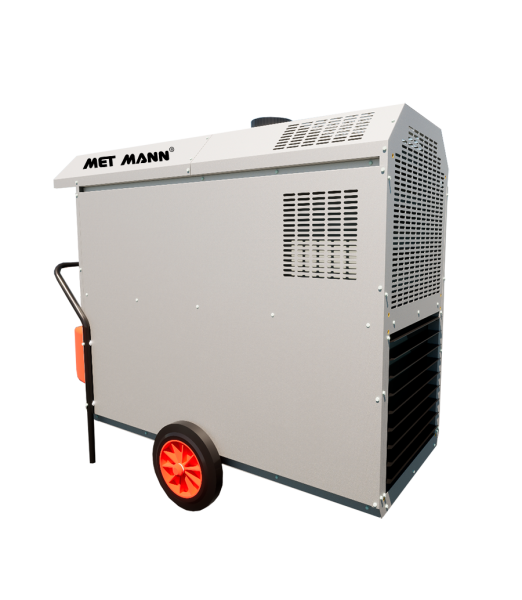

Hot air heater for greenhouses with a heating power of 69kW. Equipment designed for fast and efficient heating of premises up to 1.485 m3 with diesel, natural gas or propane gas operation.

  • Model: AM-060
  • Type of fuel: Diesel, natural gas or propane gas
  • Nominal power: 69 kW
  • Thermal performance: 89%
  • Air flow: 4.500 m3/h
  • Available pressure: 80 Pa
  • Fan motor power: 0.79 kW
  • Electrical voltage: 230V/I/50Hz
  • Sound level at 3m: 67 dB (A)
  • Dimensions (Width / Depth / Height): 565/1430/1310mm
  • Drive section: 445x485mm
  • Smoke output: 150mm
  • Weight: 157 kg

Main features

  • Compact and robust equipment
  • Heat exchanger with a thermal efficiency higher than 89%
  • External finish in galvanized steel
  • Thermal insulation with air chamber and / or fiberglass
  • Centrifugal fan group
  • Electrical control and protection panel.
  • Shielded room thermostat (optional).
  • Thermostats of activation and stop of the burner and fan.
  • Safety thermostat.
  • Air supply grille (optional).
  • Possibility of applying duct network.
  • Optional supply with handlebar and wheels (optional).
